Uni Assignment 4 digit 7 Segment

/ 2 min read

Circuit

Circuit

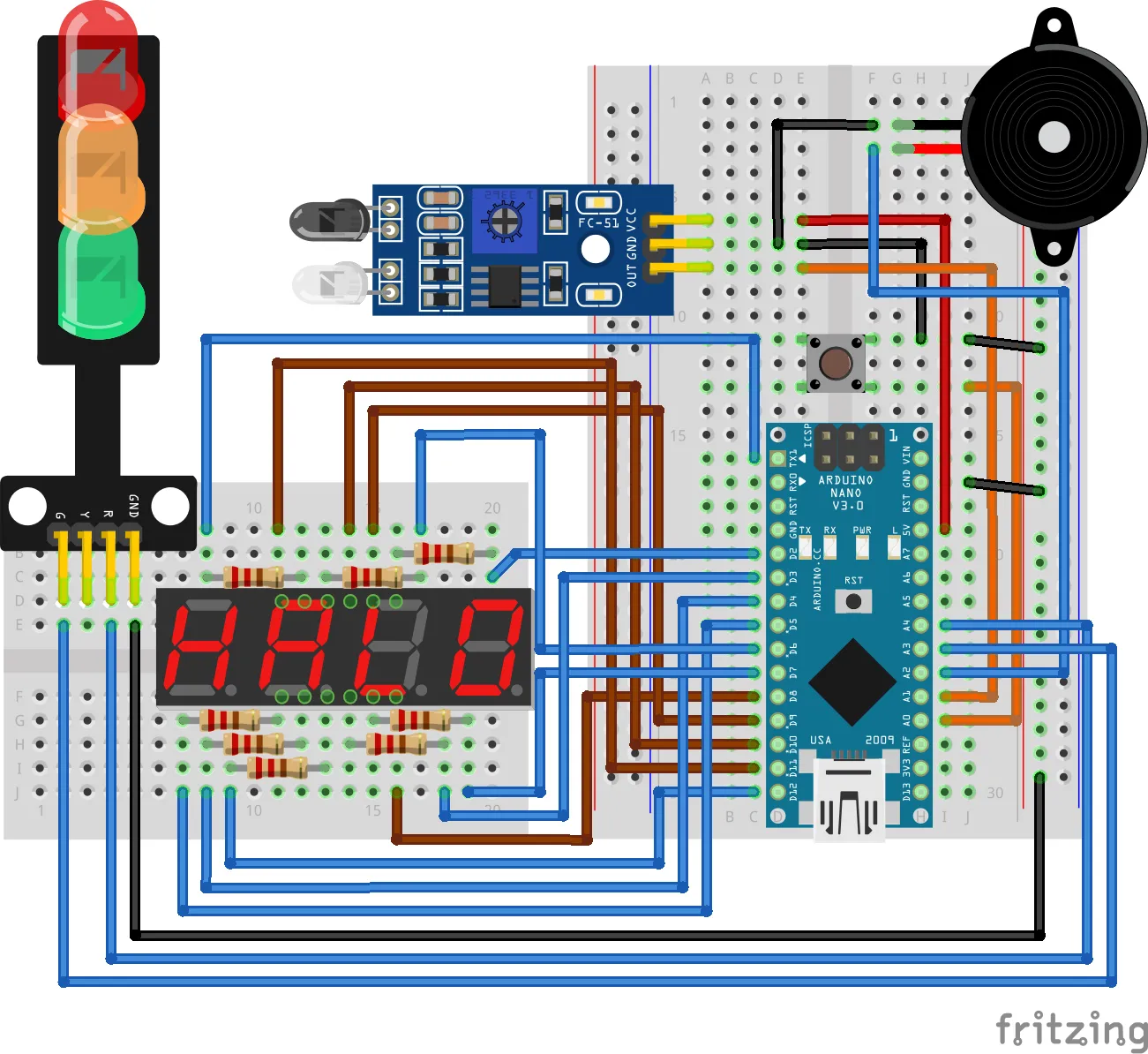

More horrible wiring. I hope this is understandable enough.

Code

void display_segmen(int A, int B) {
uint8_t angka[10] = { 0x7e, 0x0c, 0xb6, 0x9e, 0xcc, 0xda, 0xfa, 0x0e, 0xfe, 0xde };
PORTB = 0x0e;
PORTD = angka[A / 10 % 10];
PORTB &= ~(1 << PB4);
_delay_ms(5);
PORTB = 0x0d;
PORTD = angka[A % 10];
PORTB |= (1 << PB4);
_delay_ms(5);
PORTB = 0x0b;
PORTD = angka[B / 10 % 10];
PORTB &= ~(1 << PB4);
_delay_ms(5);
PORTB = 0x07;
PORTD = angka[B % 10];
PORTB &= ~(1 << PB4);
_delay_ms(5);
}
int main() {
DDRD = 0xfe;
DDRB = 0x1f;
DDRC &= ~(1 << PC0) | ~(1 << PC1);
DDRC |= (1 << PC2) | (1 << PC3) | (1 << PC4);
PORTC |= (1 << PC0) | (1 << PC1);
int i = 0;
int waktu = 0;
bool pb, last_pb;
bool ir, last_ir;
bool buzz = false;
int timA = 0;
int timB = 0;
while (1) {
pb = !(PINC & (1 << PC0));
ir = !(PINC & (1 << PC1));
if (ir && !last_ir) {
timB += 3;
buzz = true;
}
last_ir = ir;
if (pb && !last_pb) {
timA += 3;
buzz = true;
}
last_pb = pb;
if (buzz) PORTC |= (1 << PC2);
else PORTC &= ~(1 << PC2);
waktu++;
if (waktu == 3) {
waktu = 0;
if (buzz) {
buzz = false;
}
}
if (timA >= 99 || timB >= 99) {
PORTC |= (1 << PC3);
PORTC &= ~(1 << PC4);
} else {
PORTC &= ~(1 << PC3);
PORTC |= (1 << PC4);
}
if (timA >= 99) { timA = 99; }
if (timB >= 99) { timB = 99; }
display_segmen(timA, timB);
}
return 0;
}
